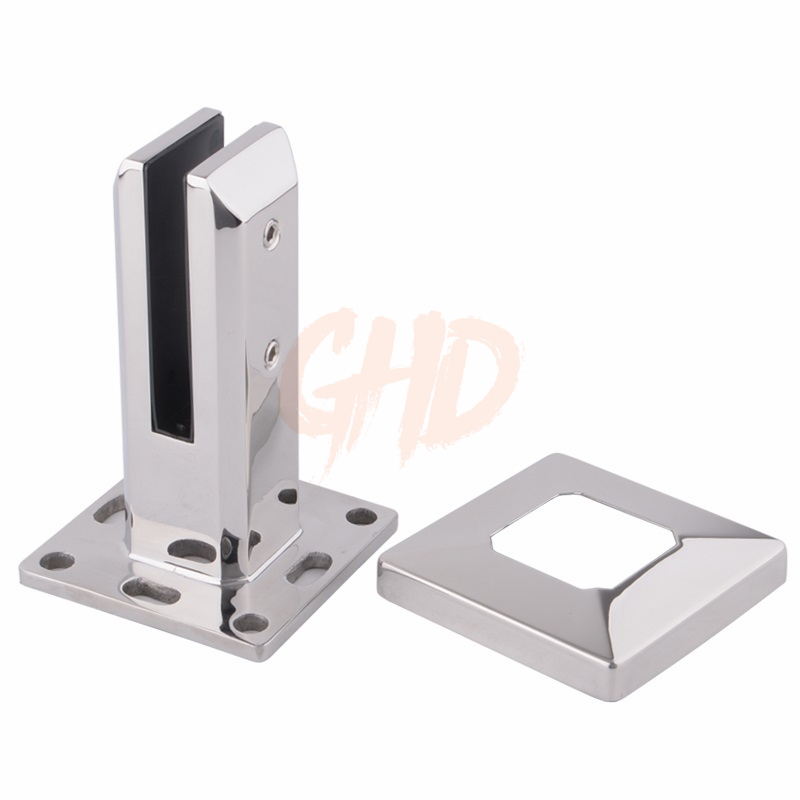

> Full set included : spigot, cover plate, gasket insert and packer.
> Suitable for glass thickness : 10mm - 12mm.
> Accessory needed : Counter Sunk Dyna Bolts (normally use 4pcs* 14mm*75mm)
> Installation Guid:(Suggestion only,adjust based on actural situation)
1.Mark out the central line of proposed glass fence with a chalk line.Determine the spigot location based on the panel size.(refer to below chart).Mark out and drill holes.
2.Fit the spigots to be floor with screws(not provided) , by seeting the two outer spigots of your total span, a string line can be run in the middle of the spigots,giving correct height for all spigots in between.
3. After all spigots installed,put the spigot cover to cover the screws.
4. The glass is then installed to the spigots.Place plastic packers between glass & spigot to avoid glass touch the metal.Fix glass from grub screws on the spigots with allen key.
>Spigot Position:(2spigots for one panel)
| Glass Width Range | Spigot Center from Glass Sides |
| 200-250mm | 50mm |
| 300-700mm | 100mm |
| 750-1050mm | 150mm |
| 1100-1350mm | 200mm |
| 1400-1750mm | 250mm |
| 1800-2000mm | 300mm |
